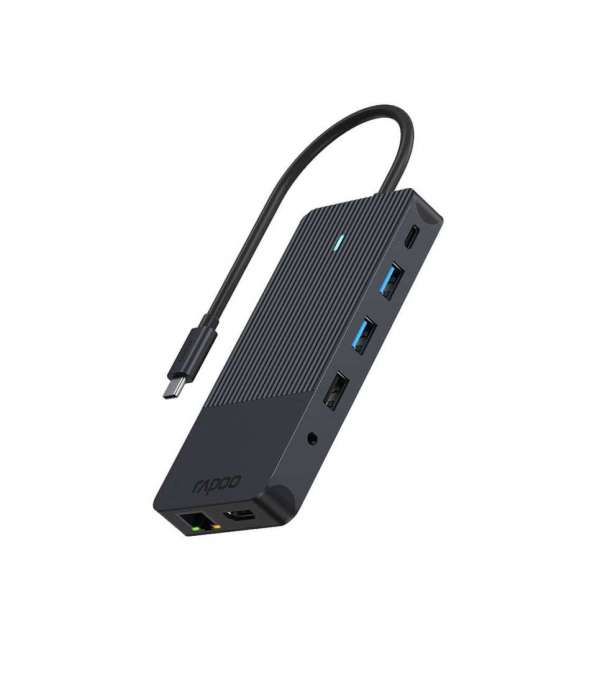

12-in-1 USB-C Multiport Adapter
UCM-2006
- Multi-functional 12-in-1 solution: connect 11 devices and simultaneously charge your USB-C host device
- Connect 3 USB-A devices & 1 USB-C device
- Crystal clear 4K Ultra HD video and audio
- Read and write SD and MicroSD cards
- Connect your USB-C device to a wired Gigabit network
- Connect any audio device with a 3.5mm plug
- Connect 3 displays in SST (Single Stream Transport) or MST (Multi-Stream Transport) mode
- Simultaneous fast charging of your USB-C host device thanks to 100W USB-C PD
- Fast and reliable file transfer speed (5Gbps)
- Easy Plug & Play, no setup/drivers needed
- Reversible ultra-slim USB-C plug design
- Durable aluminium housing
- Compatible with all major operating systems
Related products
Simplify your life with this multi-functional accessory from Rapoo, a must-have for anyone who needs to connect various devices to their USB-C notebook. Boasting an elegant yet durable exterior with aluminium housing, Rapoo’s UCM-2006 enables you to connect 11 devices and charge your USB-C host device at the same time. Enjoy an all-in-one solution that covers all your multimedia connection necessities.
UCM-2006 features a reversible ultra-slim design of the USB-C plug, which offers extra convenience, eliminating the all-familiar problem of plug orientation or cable direction. Simply connect it with ease no matter its side!
The times of not having enough USB ports available are behind you since UCM-2006 allows you to connect 3 USB-A devices and 1 USB-C device. You can connect up to 3 displays in SST (Single Stream Transport) or MST (Multi-Stream Transport) mode. Extend your screen with the 2 available HDMI and 1 DisplayPort ports, and directly stream 4K UHD@60Hz video to HDTV’s, monitors, or projectors: perfect to enjoy a full HD movie on your HDTV, extend a video game on your monitors, or impress with your presentations during business and office meetings. If you work on multiple files simultaneously or use extensive Excel files and documents, UCM-2005 makes these activities easier.
For those who cannot do without their music, UCM-2006 also features a connection for any audio device with a 3.5mm plug.
With the UCM-2006 you can also connect your input devices such as keyboards, computer mice and external hard drives to your USB-C device. Enjoy fast and reliable file transfer speed of 5Gbps. You can also read and write SD and MicroSD Cards thanks to the built-in card reader slots. Use the RJ45 port to connect to a wired Gigabit network: especially useful in cases of unavailable wireless network, wireless interference or bad connection, or when you need faster internet connection than the available wireless network.
UCM-2006 works with Windows notebooks, PC’s, Chromebooks with a USB-C port, MacBook Pro/Air with Thunderbolt 3 or 4, iPad, other tablets and smartphones, as well as many other devices with a USB-C port. It is also compatible with Samsung Dex/Desktop Mode.
To top it off, you can do all that while you are powering up your notebook with the 100W USB-C Power Delivery port!
UCM-2006 is also very easy and works with all major operating systems and popular USB-C devices. It’s fully Plug & Play, there are no additional drivers or software needed, simply plug the USB-C input cable and you are ready to go.
User Manual
Declarations of Conformity
General FAQ
Specifications
Ports
| Input | USB-C |
| 1 x USB-A Output | USB 2.0, 480Mbps data / 7.5W power |
| 2 x USB-A Output | 5Gbps data / 7.5W power |
| 1 x USB-C Output | 5Gbps data / 7.5W power |
| 2 x HDMI 2.0 Output | Yes |
| 1 x DisplayPort 1.2 | Yes |
| 1 x SD Card Reader Slot | Yes |
| 1 x MicroSD Card Reader Slot | Yes |
| 1 x RJ45 Gigabit LAN Output | Yes |
| 1 x 3.5mm Audio Output | Yes |
| 1 x USB-C Power Delivery 100W (20V/5A) pass-through | Yes |
Features
| USB 3.2 Gen 1 | Superspeed USB |
| USB Battery Charging | 1.2 up to 7.5W (5V/1.5A) |
| Resolution | Up to 3840x2160 @60Hz |
| Multi-Stream Transport (MST) Support: | Extend and Mirror Mode |
| Supports | Secure Digitalv1.0/v1.1/v2.0/SDHC/SDXC up to 2TB |
| Supports | Secure Digital v3.01 UHS-I (SDR12/SDR25/SDR50/DDR50/SDR104) |
| Supports | MultiMediaCard (MMC) v3.x/v4.0/v4.1/ 4.2 |
| Auto-detection | 10/100/1000Mbps |
| Supports | Wake-on-LAN |
| Supports | 16-bit/48kHz |
| Plug & Play | No software needed |
| Integrated cable | 18 cm |
Compatibility
| USB-C port | (PD & DP Alt Mode) |
| USB-C PD charger & cable | |
| Compatible with | All major operating systems |
Dimensions
| Height | 15 mm |
| Width | 128 mm |
| Depth | 61 mm |
| Weight | 118 g |
